| Supported CPU | AMD Ryzen 7000 Series Desktop Processors |
| Brand | Asus |
| CPU Sockets | AM5 |
| PCI | AMD Ryzen™ 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots, AMD Ryzen™ 9000 & 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot (support x16 mode) AMD Ryzen™ 8000 Series Desktop Processors -1 x PCIe 5.0 x16 slot (support x8/x4 mode), AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slots |
| Slots | 4 DIMM |
| Supported Memory | Up to DDR5-6400+/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, EXPO supported |
| Maximum Memory | 192 GB |
| RAM Type | DDR5 |
| USB | Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports, Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®) |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors, Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ports | 1 x Intel® 2.5Gb Ethernet, 1 x HDMI® port, 5 x Audio jacks, 1 x DisplayPort, 1 x Wi-Fi Module, 1 x BIOS FlashBack™ button |
| Special Features | ASUS EZ DIY: - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - Pre-mounted I/O shield - SafeSlot - SafeDIMM, ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS Thermal Solution - M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB header - Addressable Gen 2 headers, ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O - Stainless-Steel Back I/O |

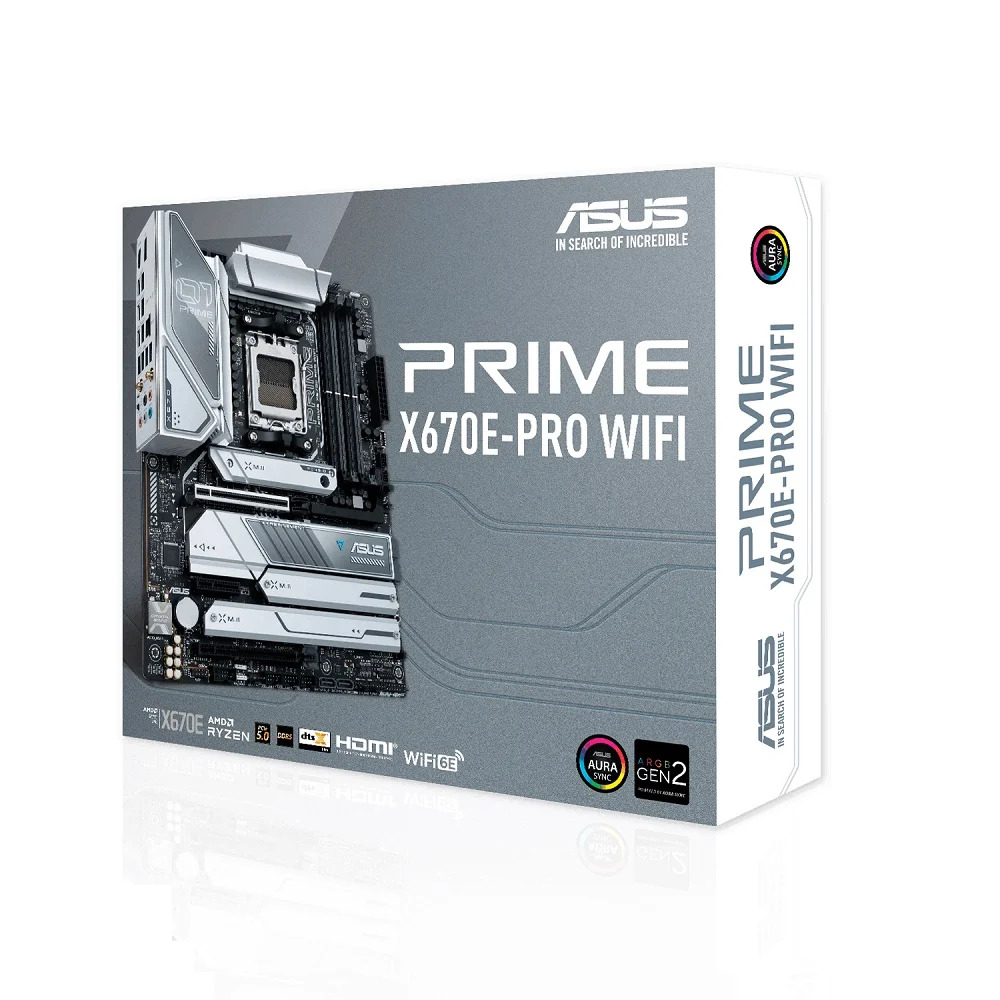

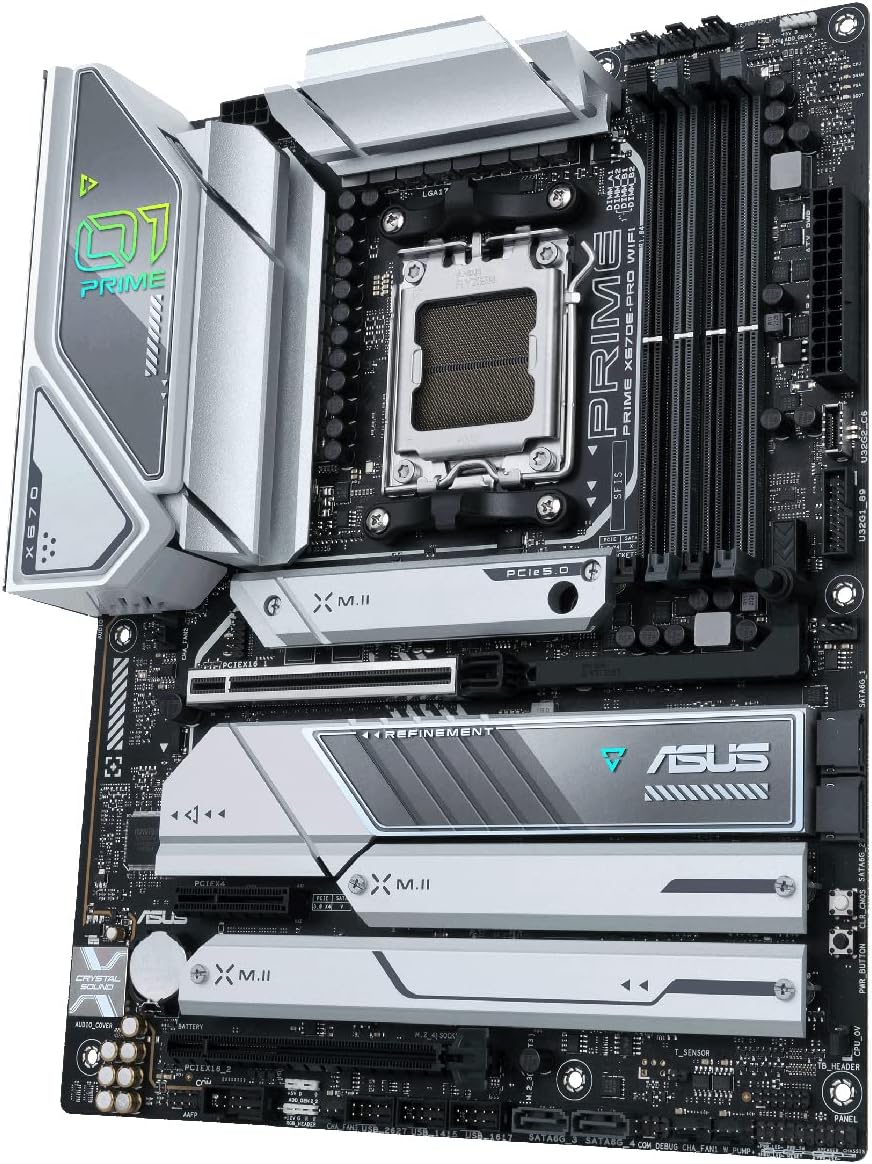

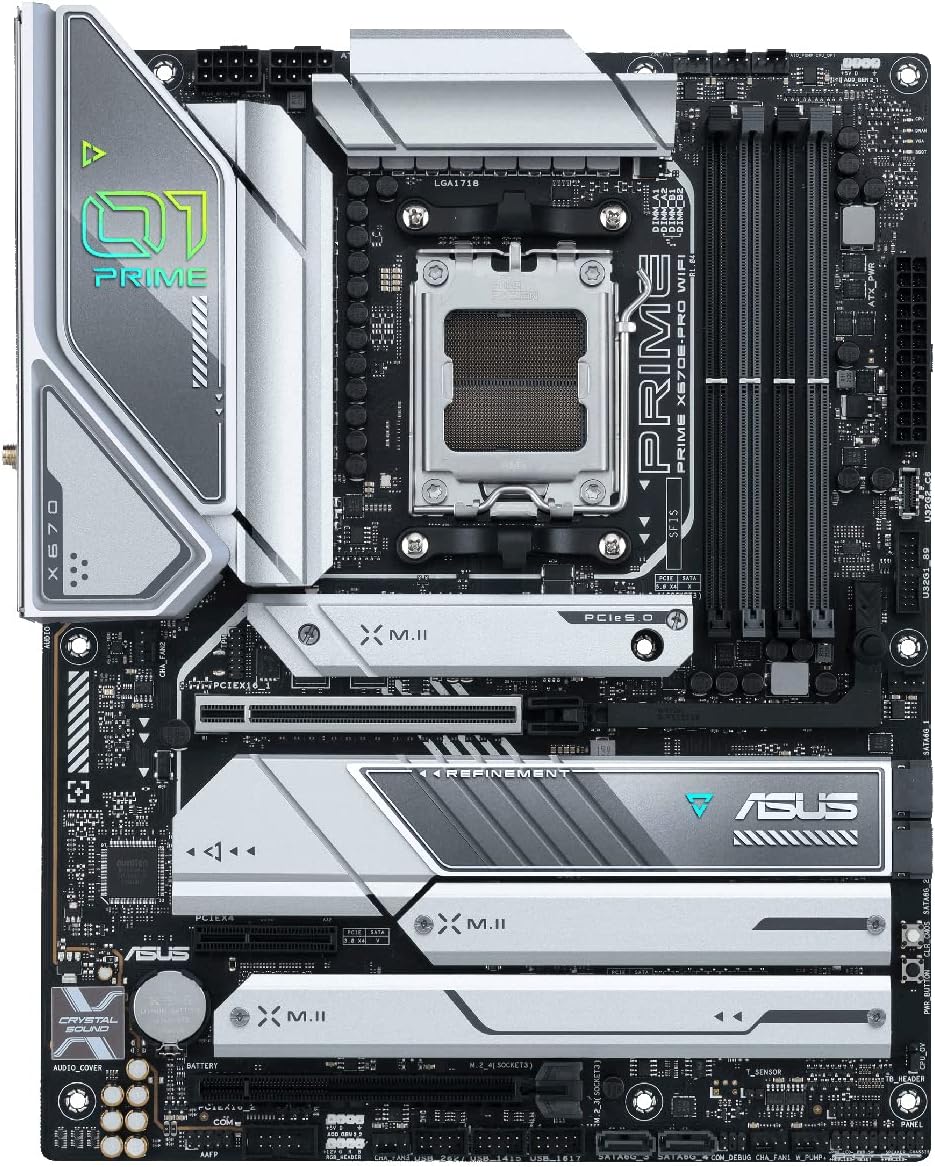

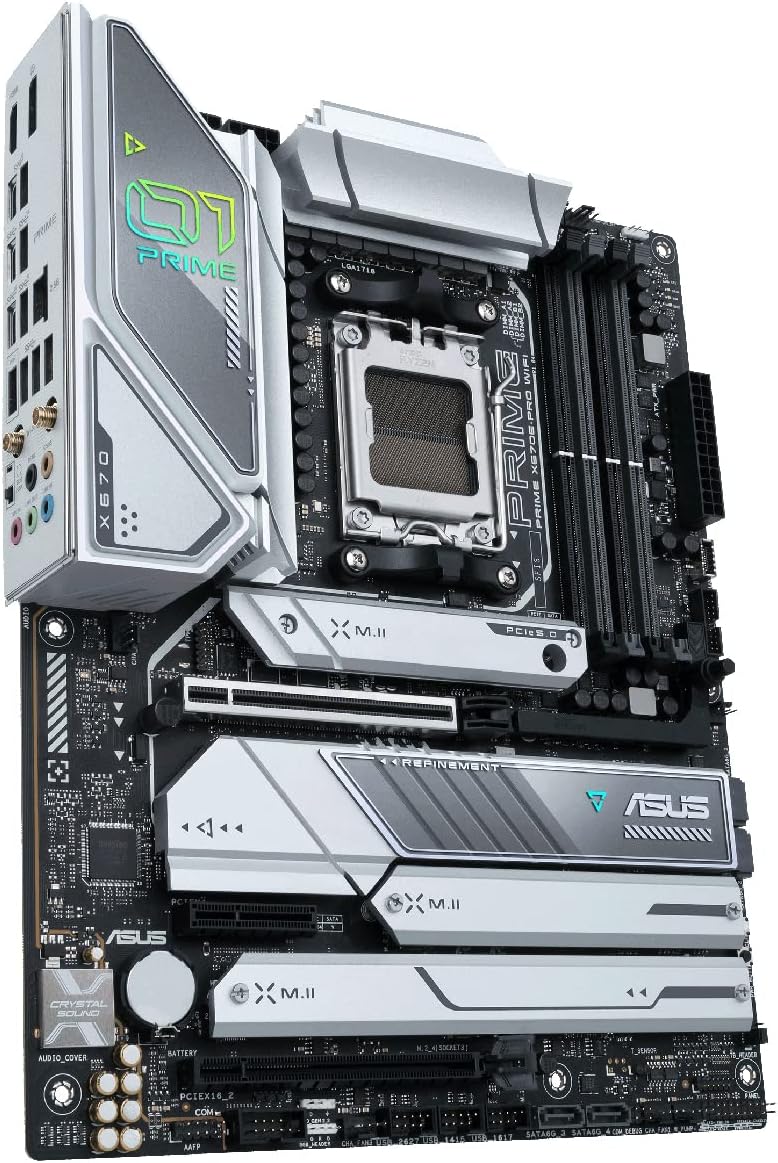

The ASUS PRIME X670E-PRO WiFi is a high-performance ATX motherboard designed for AMD Ryzen™ 7000 Series processors (AM5 socket) with the X670E chipset. It delivers advanced features such as PCIe® 5.0 support, DDR5 memory compatibility, and comprehensive connectivity, making it ideal for gaming, content creation, and professional workloads.
Processor Support: AMD Ryzen™ 7000 Series (AM5 socket)
Chipset: AMD X670E
Memory Support: Up to 128GB DDR5, 4800–6400 MHz (OC)
Expansion Slots:
1 x PCIe® 5.0 x16 SafeSlot
1 x PCIe® 4.0 x16 slot
1 x PCIe® 4.0 x4 slot
Storage Options: 4 x M.2 slots, 4 x SATA 6Gb/s ports
Networking: 2.5Gb Ethernet, Wi-Fi 6E
USB Ports:

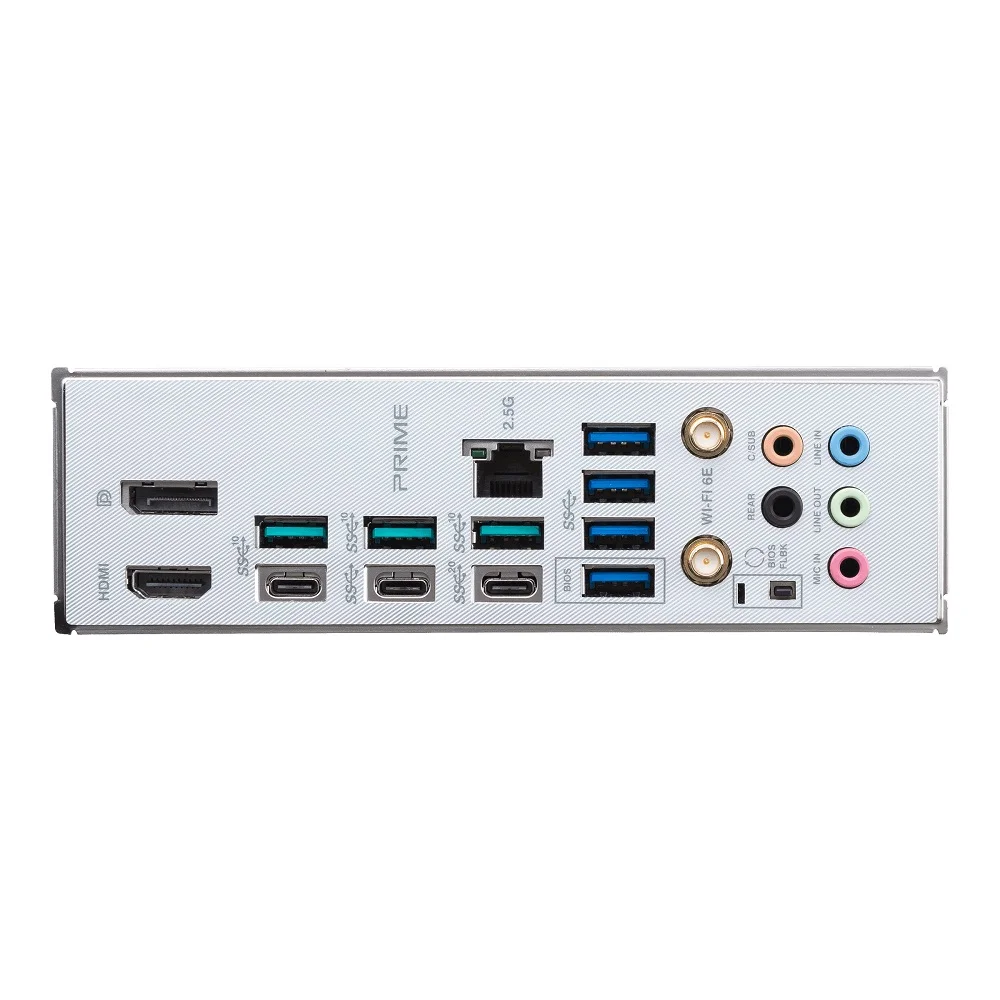

Rear I/O: USB 3.2 Gen 2x2 Type-C®, 4 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1 Type-A
Front Panel Headers: USB 3.2 Gen 2 (Type-C), USB 3.2 Gen 1, 3 x USB 2.0 headers
Video Outputs: HDMI, DisplayPort
Audio: Realtek® ALC897 codec, 7.1 surround sound
Cooling: Multiple fan headers for CPU, AIO, chassis; M.2 heatsinks
Power Delivery: 14+2 70A power stages for stable performance
Form Factor: ATX (30.5 cm x 24.4 cm)
The ASUS PRIME X670E-PRO WiFi motherboard provides top-tier performance, extensive connectivity, and professional-grade features, making it an excellent choice for building a high-performance AMD Ryzen™ 7000 Series system.
