| Supported CPU | AMD Ryzen 7000, 8000, and 9000 Series Desktop Processors |
| Brand | Asus |
| CPU Sockets | AM5 |
| PCI | 1 x PCIe 4.0 x16 slot (CPU lanes, up to x16), 2 x PCIe 4.0 x16 slots (wired as x4 by chipset), AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot, AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Slots | 4 DIMM |
| Supported Memory | Up to DDR5-6400+/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, EXPO supported (OC up to 6400u20137600 MHz depending on CPU model), 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
| Maximum Memory | 256 GB |
| RAM Type | DDR5 |
| USB | Rear: 1 x USB 3.2 Gen 2x2 Type C, 3 x USB 3.2 Gen 2 Type A, 4 x USB 3.2 Gen 1 Type A, 2 x USB 2.0 Type-A; Internal headers: 1 x USB 3.2 Gen 1 header (Type-C capable), 2 x USB 3.2 Gen 1 front headers, 2 x USB 2.0 headers, Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A), Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Ports | 1 x 24-pin ATX main power, 1 x 8-pin CPU power, 1 x CPU fan header, 1 x CPU OPT, 3 x chassis fan headers, 1 x AIO pump header, 1 x USB 3.2 Gen 1 header (Type C capable), 2 x USB 3.2 Gen 1 front headers, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers,, Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector, Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| Supported Storage | 1 x M.2 Key-M slot (PCIe 5.0 x4 for Ryzen 7000 Series), 2 x M.2 Key-M slots (PCIe 4.0 x4 via chipset), 6 x SATA 6 Gb/s ports |
| Wireless Communication module | V-M.2 slot only (Key E, PCIe) |
| Ports | 1 x HDMI® port, 1 x DisplayPort, 1 x BIOS FlashBack™ button, 3 x Audio jacks, 1 x Realtek 2.5Gb Ethernet port, 1 x PS/2 Keyboard/Mouse combo port |
| Special Features | ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot, ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O - Stainless-Steel Back I/O |

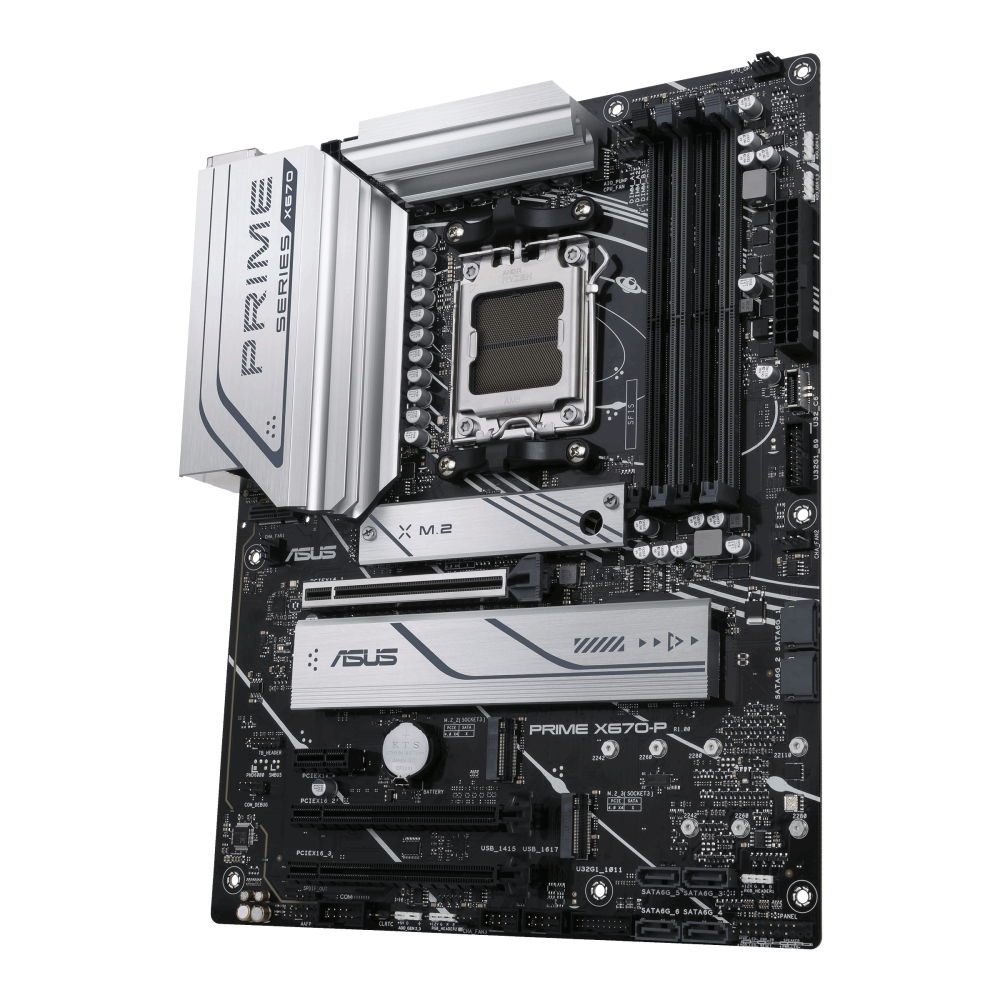

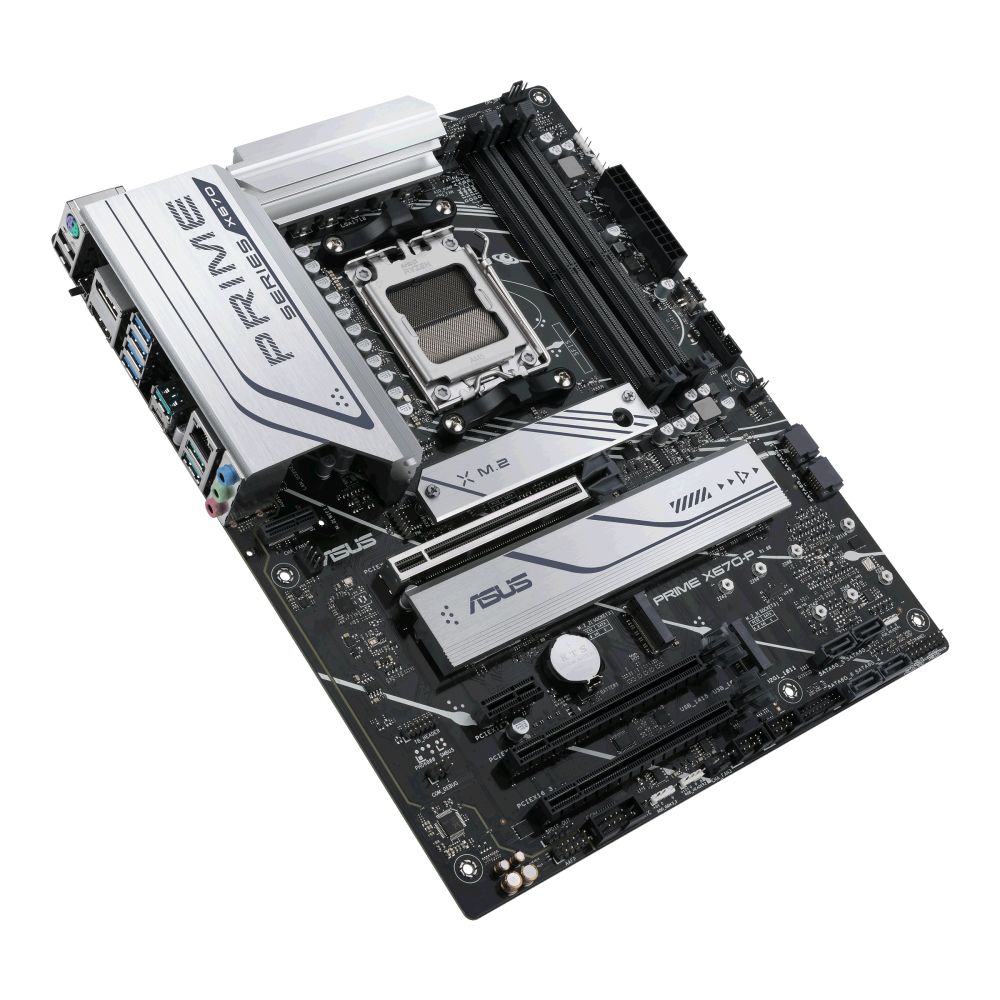

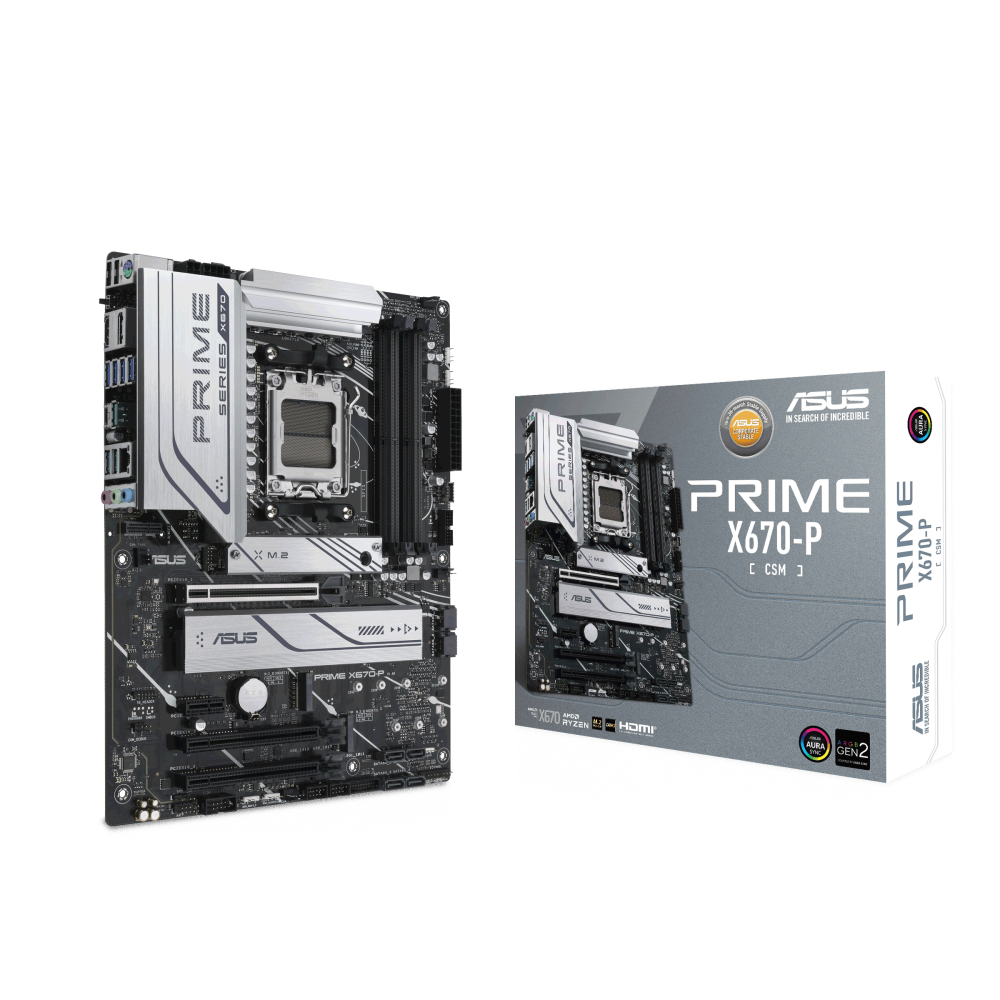

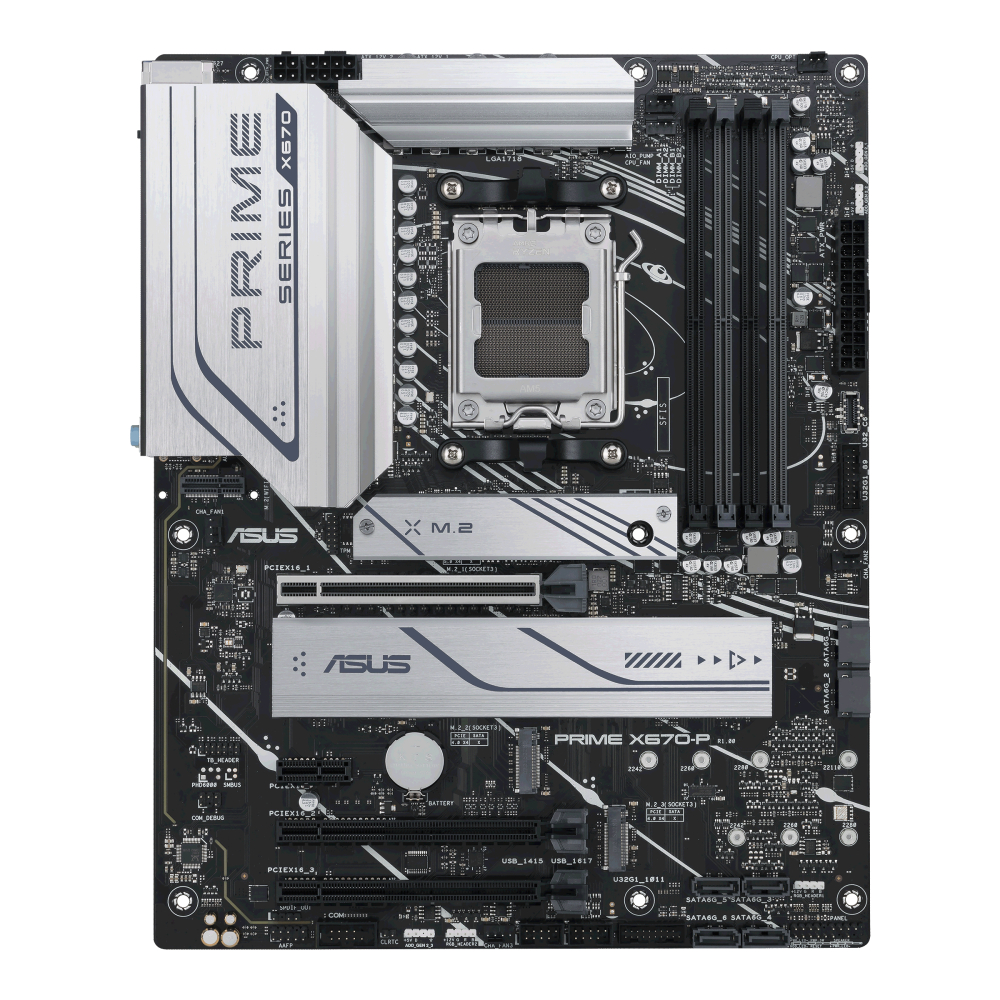

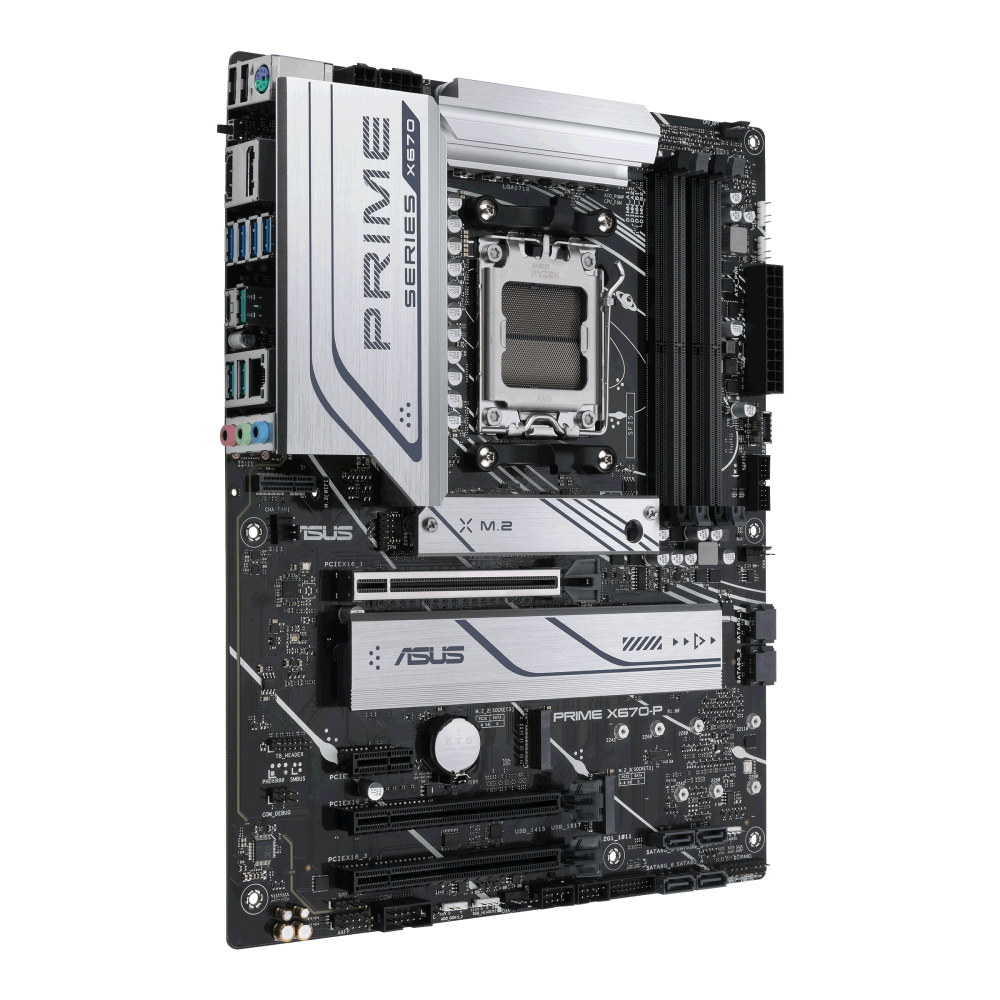

The ASUS PRIME X670-P CSM is a professional-grade ATX motherboard designed for AMD Ryzen™ 7000 Series processors (AM5 socket) with the X670 chipset. Part of ASUS’s Corporate Stable Model (CSM) lineup, it ensures extended support and reliability, making it ideal for enterprise, productivity, and high-performance builds.
Processor Support: AMD Ryzen™ 7000 Series (AM5 socket)
Chipset: AMD X670
Memory Support: Up to 128GB DDR5, up to 6400MHz (OC)
Expansion Slots:
1 x PCIe 5.0 x16 SafeSlot
2 x PCIe 4.0 x16 slots (x4 mode)
1 x PCIe 4.0 x1 slot
Storage Options: 3 x M.2 slots, 6 x SATA 6Gb/s ports
Networking: Realtek 2.5Gb Ethernet, optional Wi-Fi 6

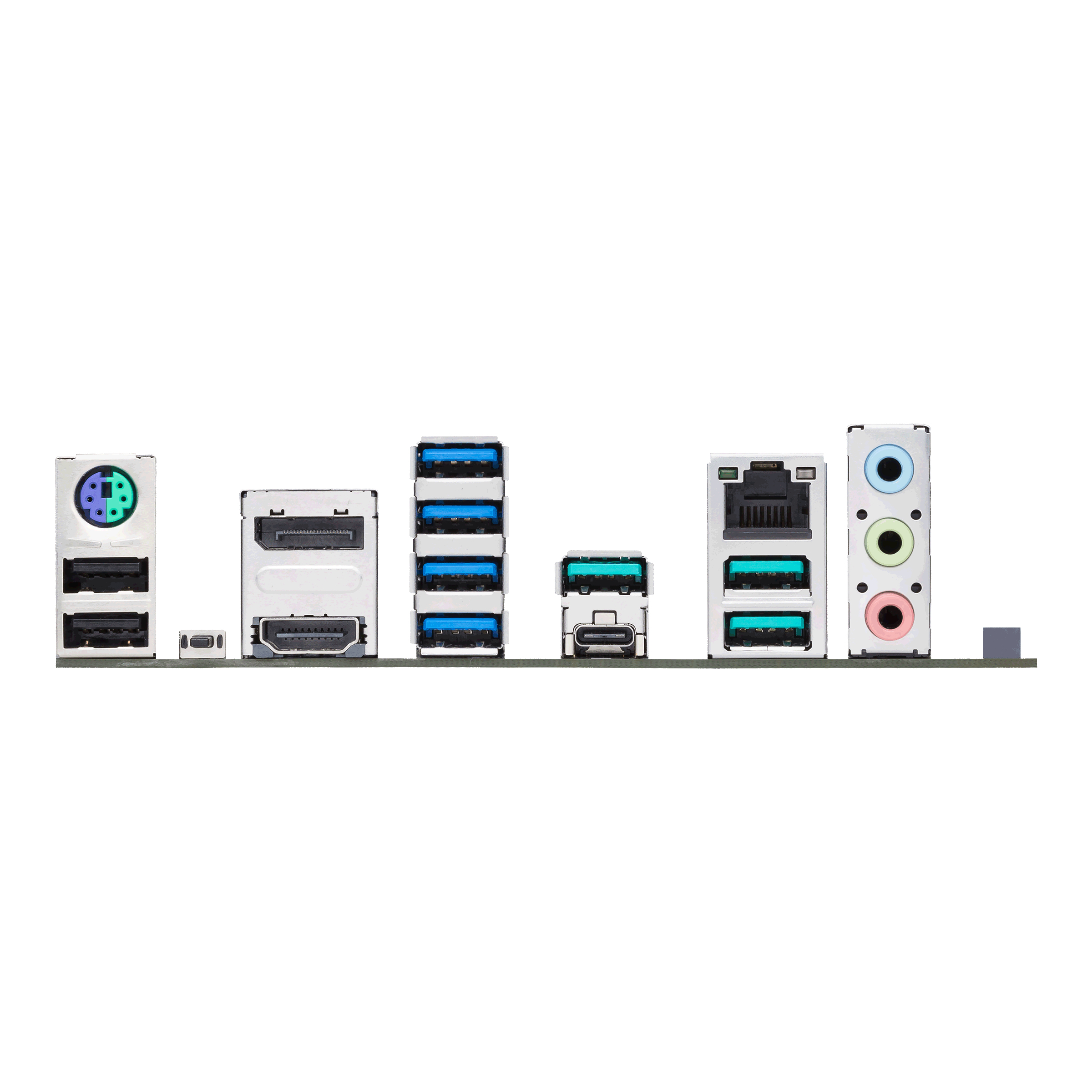

USB Ports:
USB 3.2 Gen 2x2 Type-C® rear I/O
3 x USB 3.2 Gen 2 Type-A rear I/O
4 x USB 3.2 Gen 1 Type-A rear I/O
2 x USB 2.0 rear I/O
Front panel headers supporting additional USB ports
Video Outputs: HDMI, DisplayPort
Audio: Realtek® ALC897 codec, 7.1 surround sound
Cooling: Multiple fan headers for CPU, AIO, and chassis fans
Power Delivery: 12+2 DrMOS power stages for stable CPU performance
Form Factor: ATX (30.5 cm x 24.4 cm)
The ASUS PRIME X670-P CSM provides reliable performance, extensive connectivity, and professional-grade support, making it a strong choice for high-performance AMD Ryzen™ 7000 Series systems in both enterprise and enthusiast environments.
100 percent genuine and brand new products
warranty support
Responsive after sales service
Expert consultation and support to help you choose the right product
The best wholesaler IT products in BD with exclusive deals
A complete ecommerce solution for IT products in Bangladesh provided by Eastern IT
Get the ASUS PRIME X670-P-CSM DDR5 ATX Motherboard at the best price in Bangladesh. Check latest price in BD is 38,500.00.
