| Supported CPU | AM5 socket, Ryzen 7000/8000/9000 Series |
| Brand | Asus |
| CPU Sockets | AM5 |
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
| RAM Type | DDR5 |
| USB | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors, Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Supported Storage | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2, Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| Wireless Communication module | N/A |
| DVI-D | N/A |
| Ports | 1 x HDMI® port, 1 x DisplayPort, 1 x BIOS FlashBack™ button, 3 x Audio jacks, 1 x VGA port, 1 x Realtek 2.5Gb Ethernet port, 1 x PS/2 Keyboard/Mouse combo port |
| Graphics | 1 DisplayPort 1.4 (up to 8K at 60 Hz) 1 x HDMI 2.1 (up to 4K at 60 Hz) 1 VGA |
| Special Features | ASUS 5x PROTECTION III (DIGI + VRM, LANGuard, OV Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crat |

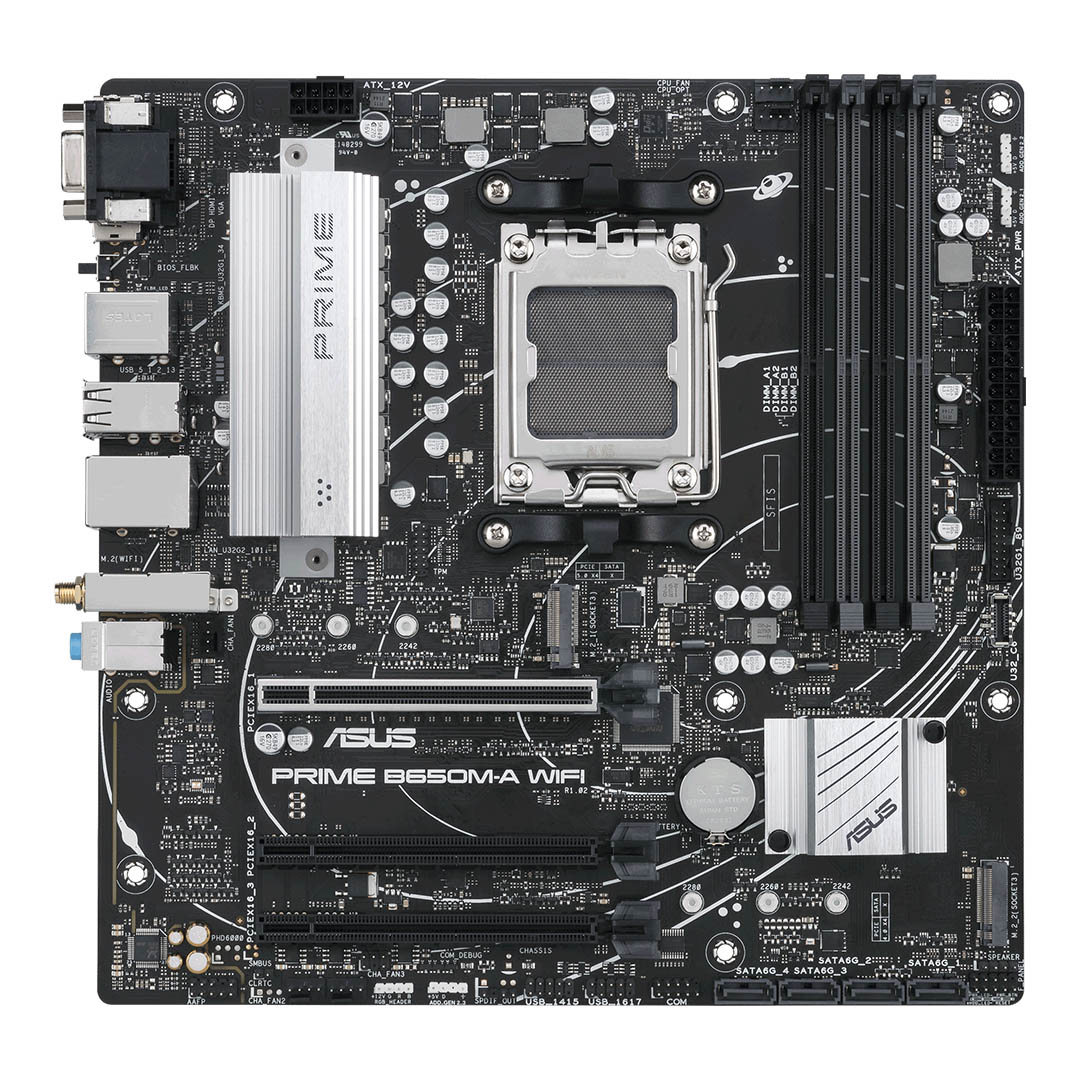

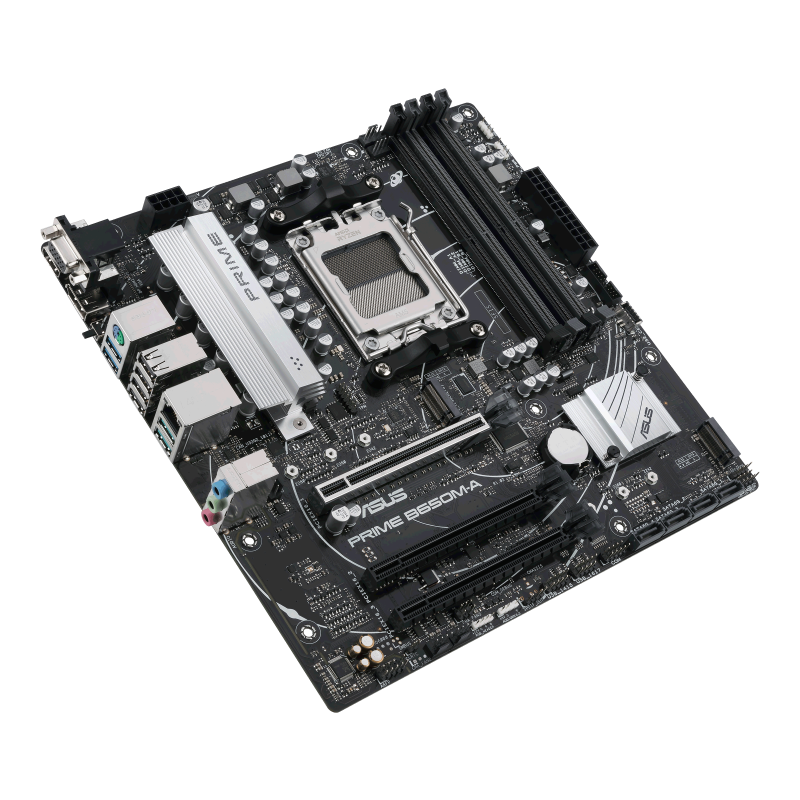

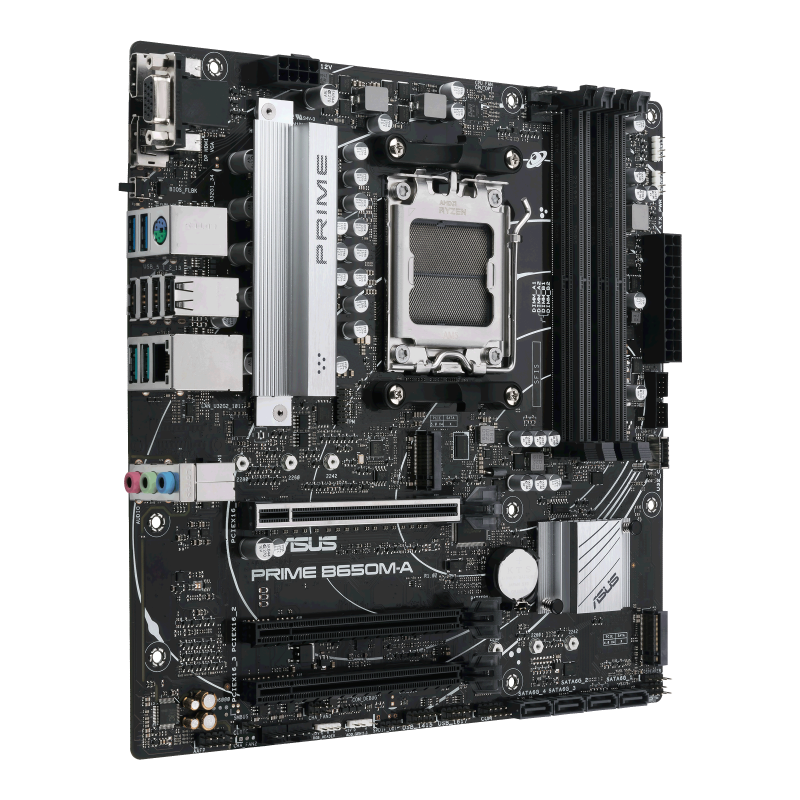

The ASUS PRIME B650M-A DDR5 is a reliable micro-ATX motherboard designed for AMD Ryzen™ 7000 Series processors (AM5 socket) with the B650 chipset. It delivers solid performance, modern connectivity, and excellent expandability, making it ideal for productivity, gaming, and compact workstation builds.
Socket & Chipset: AM5, AMD B650
Memory Support: Up to 128GB DDR5, 4800–6400+ MHz (OC)
Expansion Slots:
1 x PCIe® 5.0 x16 (SafeSlot Core+)
1 x PCIe® 4.0 x16 (x4 mode)
2 x PCIe® 4.0 x1
Storage: 2 x M.2 slots (PCIe® 5.0 x4), 4 x SATA 6Gb/s ports
Networking: Realtek 2.5Gb Ethernet; Wi-Fi 6E (Wi-Fi variant)
USB Ports:
Rear I/O: USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 2/1 Type-A, USB 2.0, HDMI®, DisplayPort, PS/2, Audio jacks
Internal Headers: USB 3.2 Gen 1 Type-C®, USB 3.2 Gen 1, USB 2.0
Audio: Realtek® 7.1 Surround Sound High Definition Audio CODEC
Cooling: VRM, M.2, PCH heatsinks, hybrid fan headers, Fan Xpert 2+
Form Factor: Micro-ATX (24.4 cm x 24.4 cm)
The ASUS PRIME B650M-A DDR5 provides a balanced combination of performance, connectivity, and expandability, making it an excellent choice for building a high-performance AMD Ryzen™ 7000 Series system.
