| Supported CPU | AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Brand | Asus |
| CPU Sockets | AM5 |
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot (support x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* -1 x PCIe 5.0 x16 slot (support x8/x4 mode), AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots |
| Slots | 4 x DIMM |
| Supported Memory | 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory |
| Maximum Memory | 192 GB |
| RAM Type | DDR5 |
| USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A), Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors, Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports, Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled. |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 |
| HDMI/DisplayPort | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Graphics | 1 DisplayPort 1.4 (up to 8K@60 Hz) 1 HDMI 2.1 (up to 4K@60 Hz) 1 VGA |
| Graphics Output | 1 x DisplayPort 1.4 (up to 8K at 60 Hz), 1 x HDMI 2.1 (up to 4K at 60 Hz) |
| HDMI | 1 × HDMI |

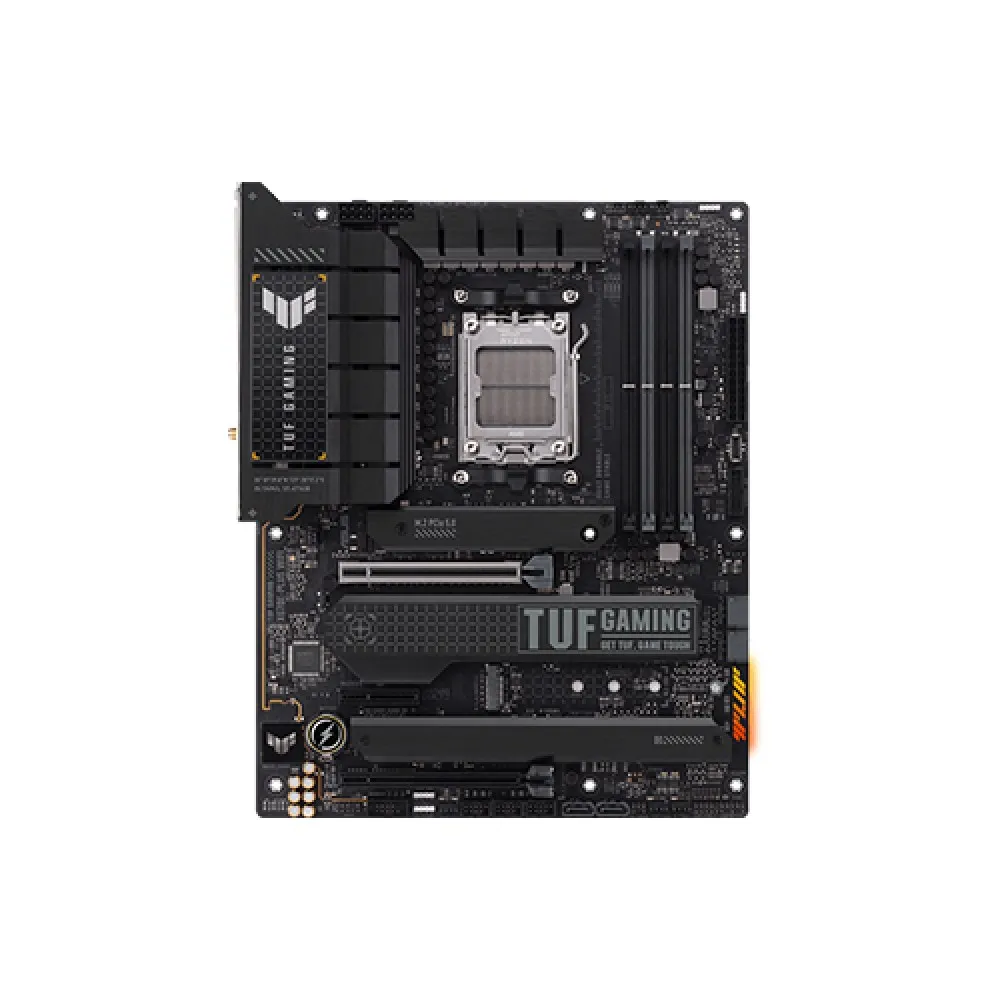

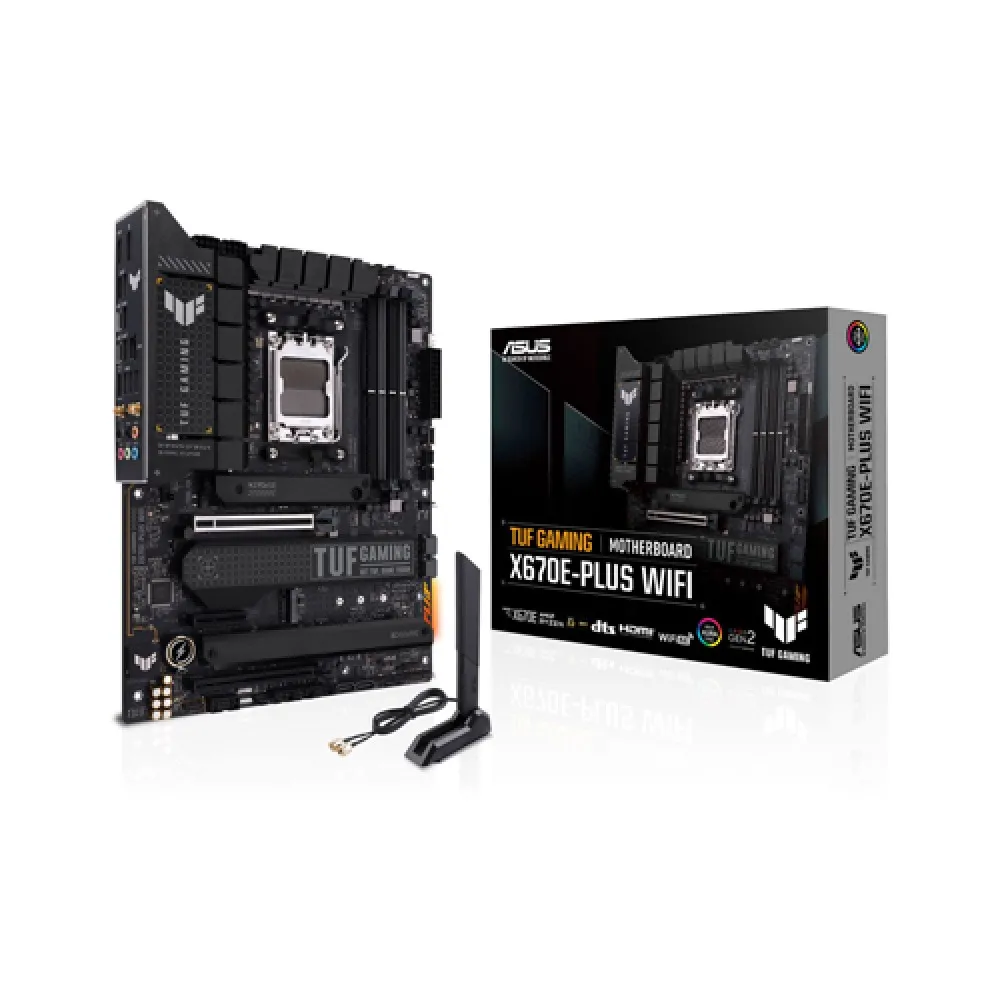

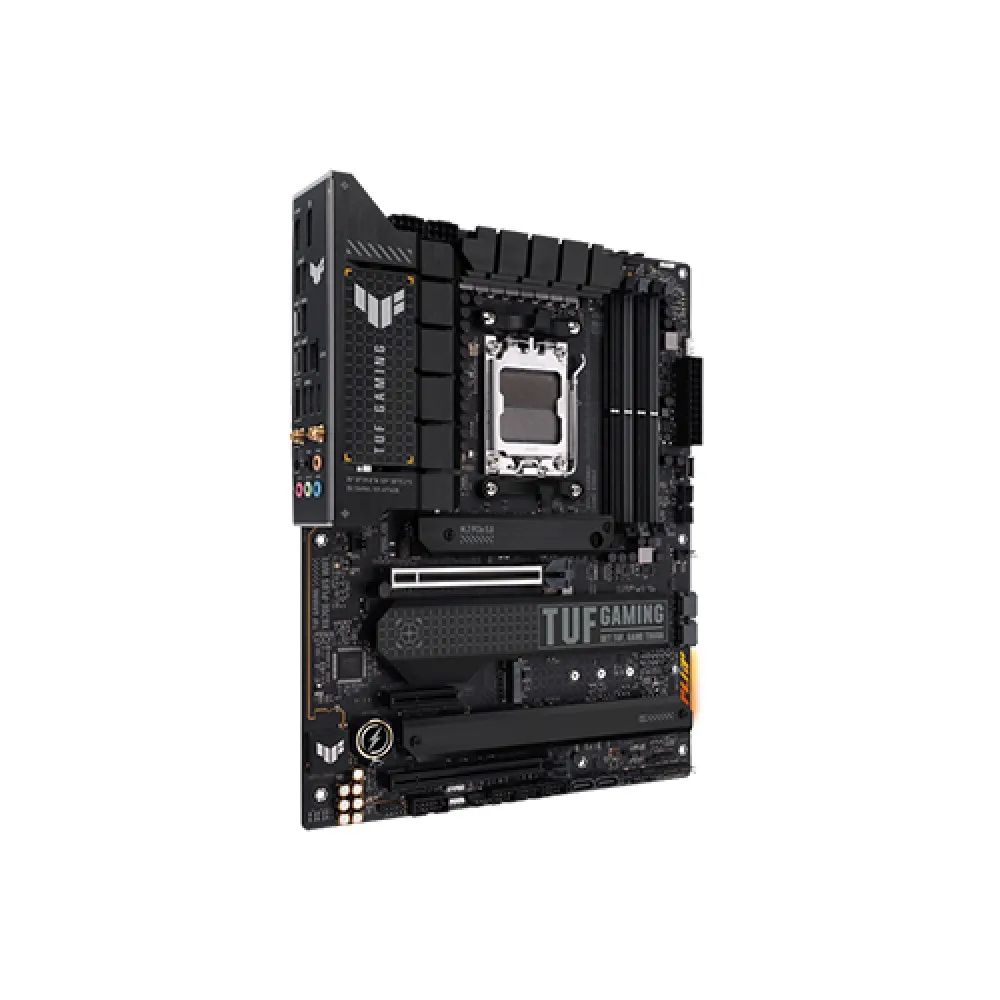

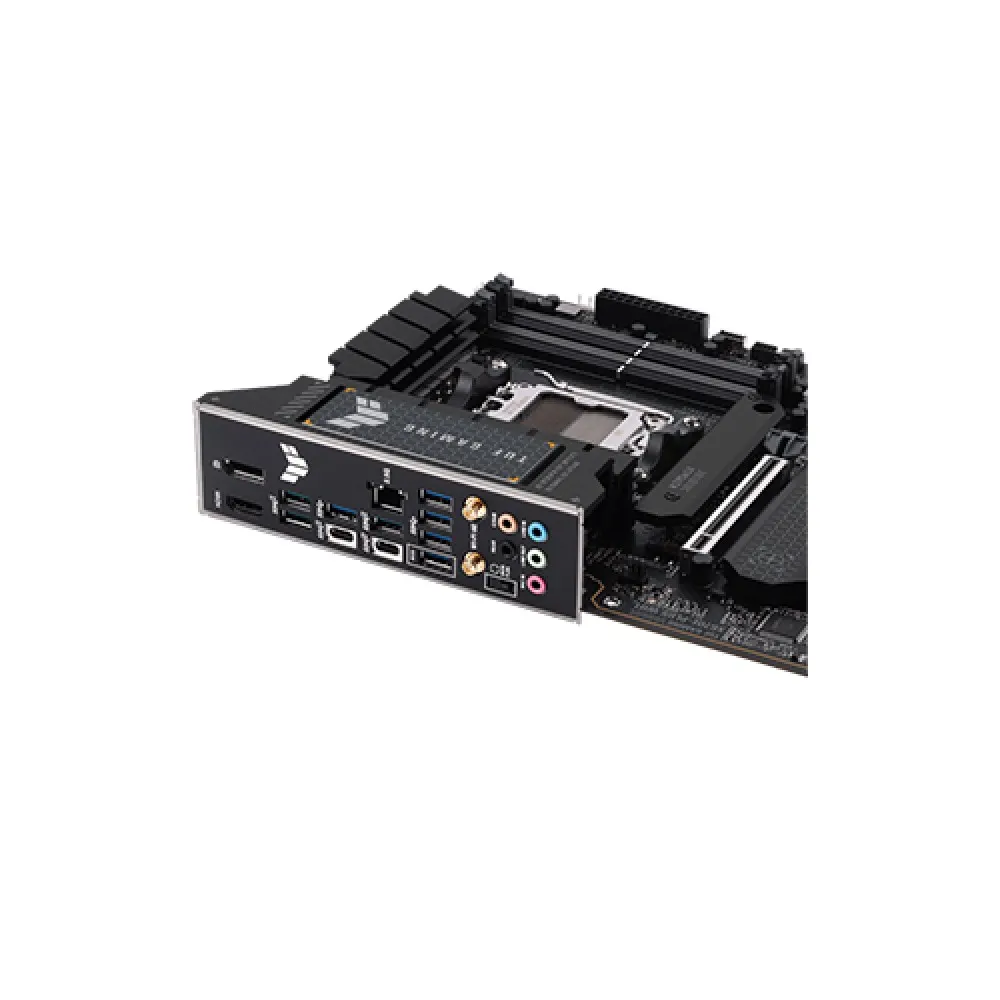

The ASUS TUF GAMING X670E-PLUS WIFI is a high-performance ATX motherboard designed for AMD's Ryzen™ 7000 Series processors. Built on the AM5 platform with the X670E chipset, it offers robust power delivery, advanced connectivity, and comprehensive cooling solutions, making it ideal for gamers and PC enthusiasts seeking top-tier performance.
Processor Support: Compatible with AMD Ryzen™ 7000 Series processors (AM5 socket).
Memory Support: Supports up to 128GB of DDR5 memory with speeds up to 6400MHz (OC).
Expansion Slots:
1 x PCIe 5.0 x16 slot (CPU)
1 x PCIe 4.0 x16 slot (PCH, at x4 mode)
1 x PCIe 4.0 x4 slot
Storage Options:
1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
1 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
2 x M.2 slots (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Networking:
1 x Realtek 2.5Gb Ethernet
Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth v5.2
USB Ports:
1 x USB 4.0 Type-C®
2 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Video Outputs:
1 x HDMI® port
1 x DisplayPort
Cooling Solutions:
VRM heatsinks with high-quality thermal pads
M.2 heatsinks
Hybrid fan headers
Fan Xpert 4 utility in Armoury Crate
Lighting: Aura Sync RGB lighting with addressable Gen 2 headers
Form Factor: ATX (12 x 9.6 inches)
The ASUS TUF GAMING X670E-PLUS WIFI motherboard is an excellent choice for users seeking a reliable and feature-rich platform for building high-performance systems.
