| Model | GIGABYTE H510M H |
| Part Number | |
| Supported CPU | Intel 11th & 10th Gen Core, Pentium, and Celeron Processors |
| Chipset | H510 |
| Form Factor | ATX |
| BIOS | 256 Mbit flash, UEFI AMI BIOS |
| PCI | 1 x PCIe 4.0 x16 (Processor), 1 x PCIe 3.0 x1 (Chipset) |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | 11th Gen Intel Core i9/i7/i5: DDR4 3200/3000/2933/2666/2400/2133 MHz; 10th Gen Intel Core i9/i7: DDR4 2933/2666/2400/2133 MHz; 10th Gen Intel Core i5/i3/Pentium/Celeron: DDR4 2666/2400/2133 MHz; Supports ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, XMP modules; Dual-channel architecture |
| Maximum Memory | 64 GB |
| Graphics | Integrated Intel HD Graphics: 1 x D-Sub port (max 1920x1200@60 Hz), 1 x HDMI port (max 4096x2160@30 Hz, HDMI 1.4, HDCP 2.3) |
| HDMI | 1 x HDMI port (max 4096x2160@30 Hz) |
| USB | 4 x USB 3.2 Gen 1 (2 rear, 2 internal), 6 x USB 2.0/1.1 (4 rear, 2 internal) |
| LAN Port | Realtek GbE |
| Internal I/O Ports | 1 x 24-pin ATX power, 1 x 8-pin ATX 12V power, 1 x CPU fan header, 1 x system fan header, 1 x RGB LED strip header, 1 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x serial port header, 1 x Clear CMOS jumper |
| Supported Storage | 1 x PCIe 3.0 (Processor), 4 x SATA 6Gb/s |
| Audio | Realtek audio |
| Wireless Communication Module | N/A |
| Special Features | GIGABYTE APP Center, @BIOS, Ambient LED, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Q-Flash, Xpress Install |
| Warranty | 3 Years |

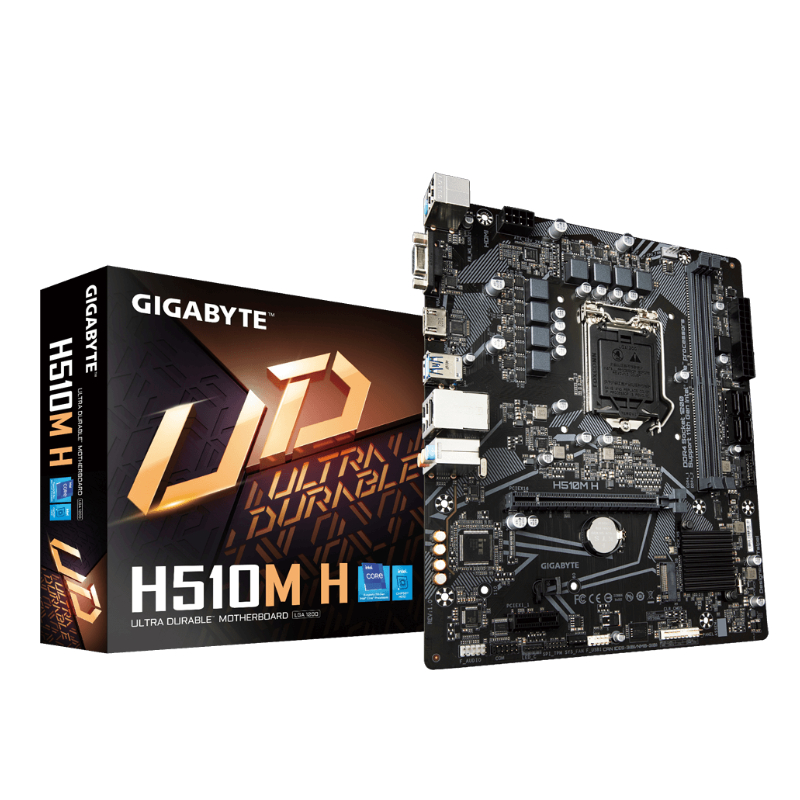

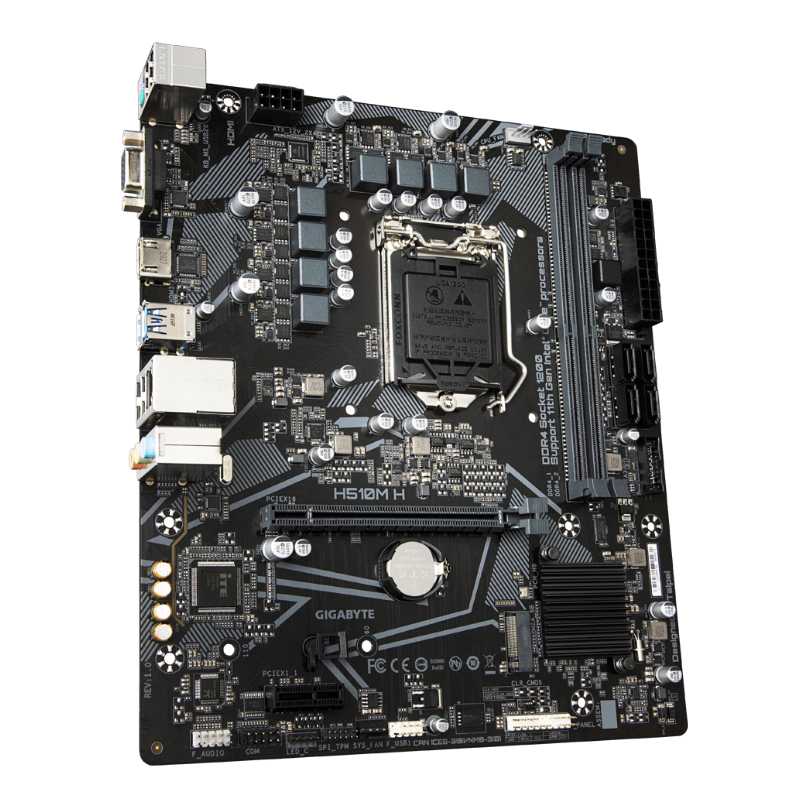

The GIGABYTE H510M H is a reliable and performance-focused motherboard built for Intel 11th and 10th Gen Core, Pentium, and Celeron processors. Equipped with the Intel H510 chipset, it supports high-speed DDR4 memory up to 64GB, PCIe 4.0 for next-gen graphics, and flexible storage options including M.2 and SATA connections. Designed for stable performance, it is ideal for home, office, and entry-level gaming setups.
Intel LGA 1200 Socket with H510 Chipset
Compatible with Intel 11th and 10th Gen Core i9, i7, i5, i3, Pentium, and Celeron processors for versatile computing needs.
Dual DDR4 Memory Support
2 DIMM slots supporting up to 64GB DDR4 RAM with speeds up to 3200MHz for 11th Gen CPUs, with XMP profile support for easy overclocking.
Advanced Expansion Capability
Features 1x PCIe 4.0 x16 slot for graphics cards and 1x PCIe 3.0 x1 slot for additional expansion cards.
Flexible Storage Options
Includes 1x PCIe 3.0 M.2 slot and 4x SATA 6Gb/s ports for high-speed SSDs and large-capacity HDDs.
Multiple Display Support
Integrated Intel HD Graphics with 1x HDMI port (up to 4096x2160@30Hz) and 1x D-Sub port (up to 1920x1200@60Hz) for dual-monitor setups.
Reliable Connectivity
Equipped with Realtek Gigabit Ethernet, 4x USB 3.2 Gen 1 ports, and 6x USB 2.0 ports for versatile device connections.
RGB Lighting Header
Includes an RGB LED strip header for adding custom lighting effects to your build.
Essential GIGABYTE Utilities
Supports @BIOS, EasyTune, Smart Backup, Q-Flash, and other GIGABYTE tools for easy system optimization and maintenance.
Durable and Long-lasting
Backed by a 3-year warranty to ensure dependable performance over time.
