Chipset - AMD B650
Sockets Supported - AM5
Supported CPU - AMD Ryzen 7000/8000/9000 Series desktop processors
Memory Slots - 4 × DDR5 DIMM (up to 128 GB, EXPO/O C up to 6400–7600 MHz depending on model)
Graphics Output - 1 × HDMI, 1 × DisplayPort
Supported CPU | AM5 socket, Ryzen 7000/8000/9000 Series |
Chipset | AMD B650 |
Form Factor | ATX |
BIOS | 256 MB Flash ROM, UEFI AMI BIOS with FlashBack support |
PCI | 1 u00d7 PCIe 5.0 u00d716 slot (CPU lanes, up to x16), 2 u00d7 PCIe 4.0 u00d716 physical slots (wired as x4 by chipset) |
Type | DDR5, dual-channel |
Slots | 4 DIMM |
Supported Memory | Up to DDR5-6400+/6200/6000/5800/5600/5400/5200/5000/4800, ECC & non-ECC, EXPO supported |
Maximum Memory | 128 GB |
Graphics | 1 u00d7 DisplayPort 1.4 (up to 8K@60 Hz) 1 u00d7 HDMI 2.1 (up to 4K@60 Hz) 1 u00d7 VGA |
HDMI | 1 |
USB | USB (rear) - 2 u00d7 USB 3.2 Gen 2 Type-A; 2 u00d7 USB 3.2 Gen 1 Type-A; 4 u00d7 USB 2.0 Type-A USB (internal headers) - 1 u00d7 USB 3.2 Gen 1 header (Type-C capable), 1 u00d7 USB 3.2 Gen 1 front header, 2 u00d7 USB 2.0 headers |
LAN Port | 1 u00d7 Realtek 2.5Gb Ethernet |
DVI-D | N/A |
Internal I/O Ports | 1 u00d7 24-pin ATX main power; 1 u00d7 8-pin CPU power; 1 u00d7 CPU fan header; 1 u00d7 CPU_OPT; 3 u00d7 chassis fan headers; 3 u00d7 ARGB Gen 2; 1 u00d7 Aura RGB; 1 u00d7 Clear CMOS; COM header; Front panel audio + S/PDIF; SPI TPM; System panel header |
Supported Storage | 2 u00d7 M.2 Key-M slots (M.2_1: PCIe 5.0 x4 for Ryzen 7000/9000, PCIe 4.0 for 8000; M.2_2: PCIe 4.0 x4 via chipset) + 4 u00d7 SATA 6 Gb/s ports (RAID 0/1/10 support) |
Audio | Realtek 7.1 HD Audio CODEC with shielding, premium capacitors; rear jacks + front panel support |
Wireless Communication module | N/A |
Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, OV Protection, SafeSlot Core+, stainless-steel I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), robust VRM heatsink, BIOS FlashBack button & LED, Aura Sync RGB, OptiMem II for improved memory OC, Armory Crate, AI Suite 3, Fan Xpert 2+, BIOS CrashFree, UEFI EZ Flash |
Warranty | 3 years |

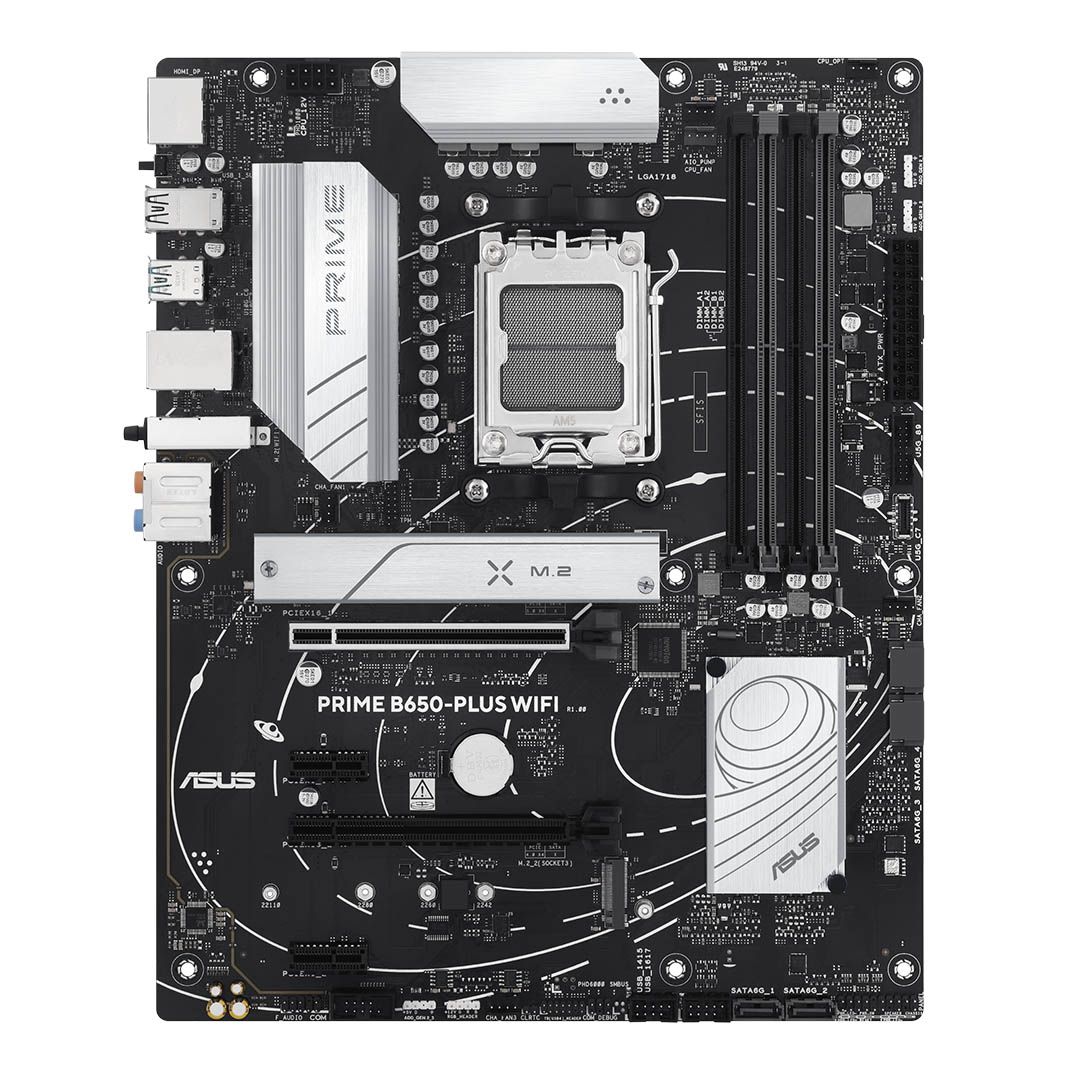

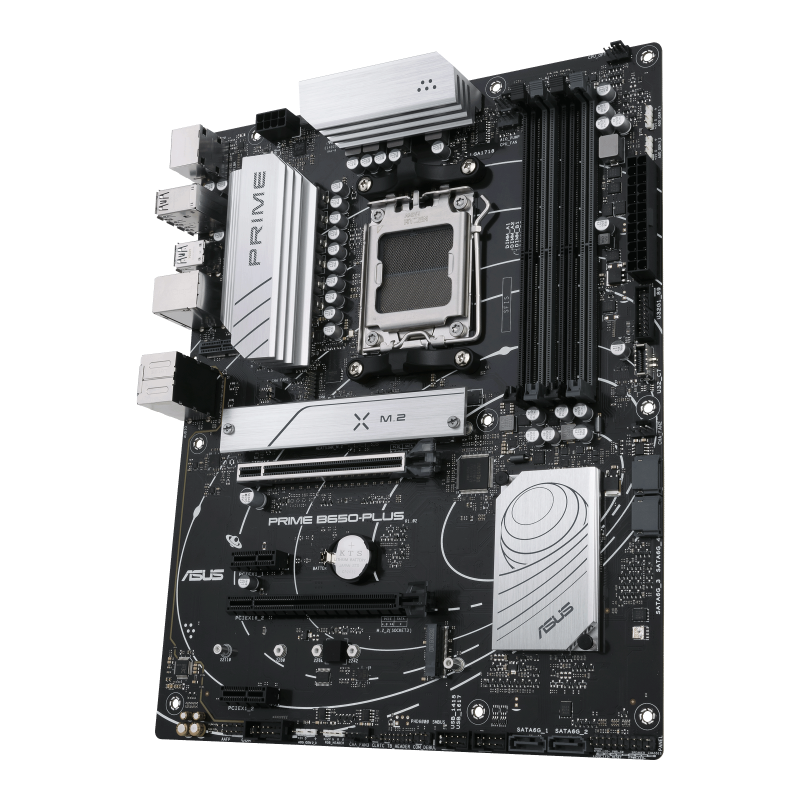

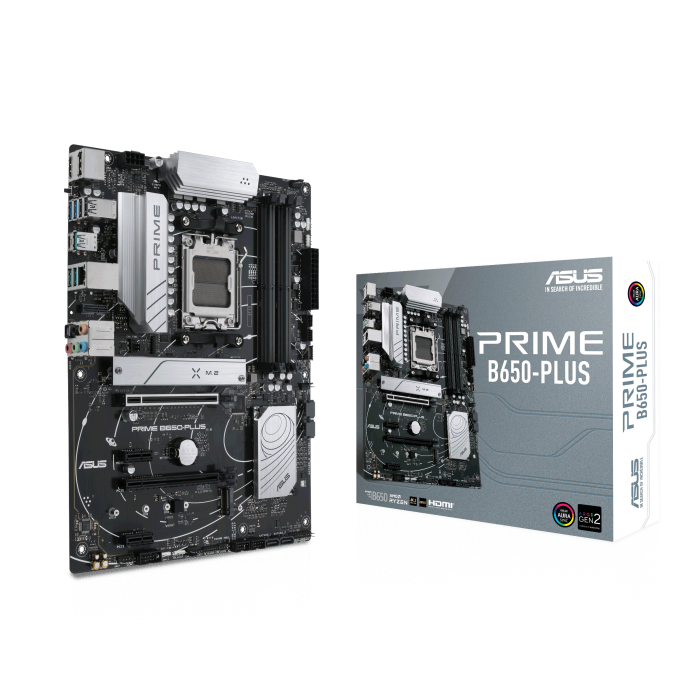

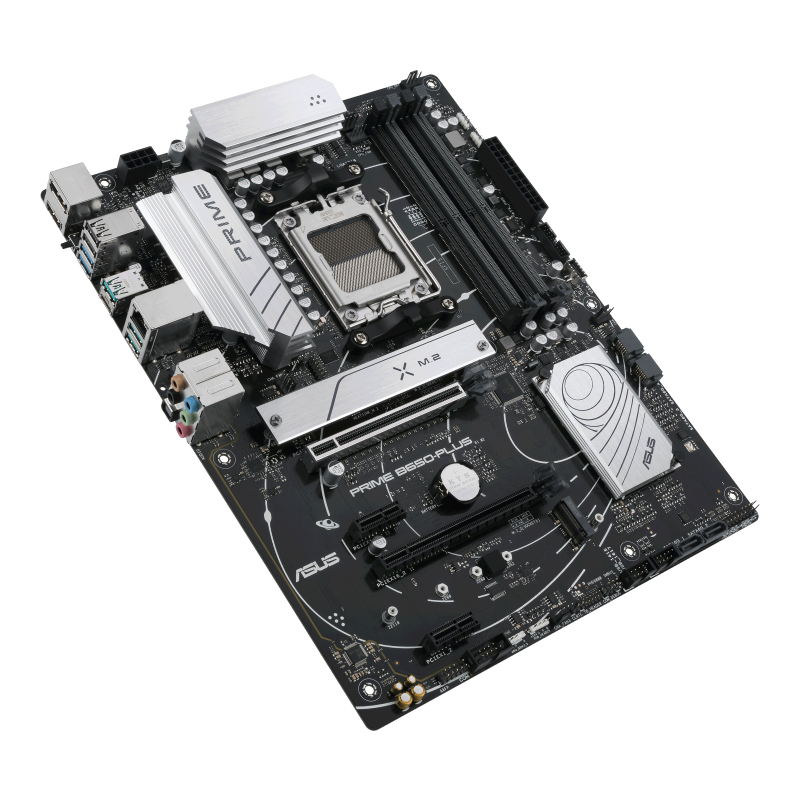

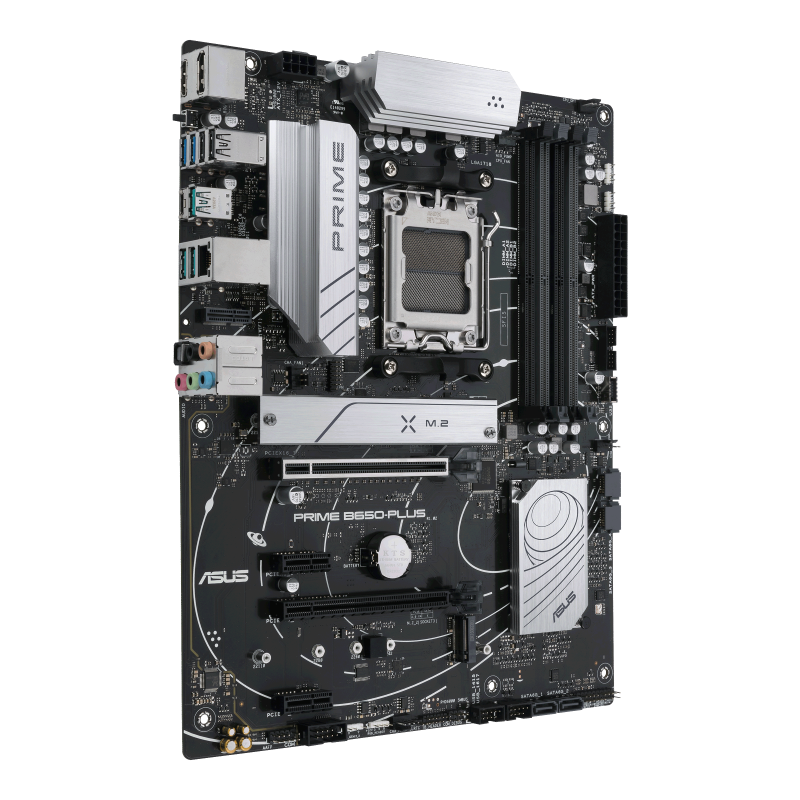

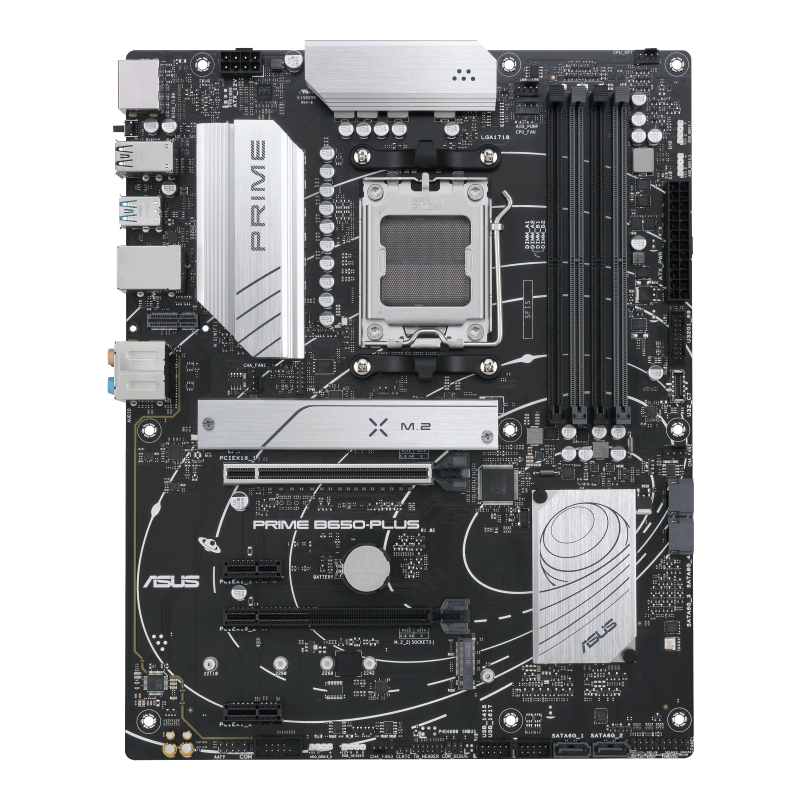

ASUS PRIME B650-PLUS – Reliable Performance for Ryzen 7000 Series Builds
The ASUS PRIME B650-PLUS is an ATX motherboard designed for AMD Ryzen 7000 Series processors, offering a balance of performance, connectivity, and durability. It supports DDR5 memory, PCIe 5.0 M.2 storage, and features a robust power design suitable for both gaming and productivity tasks.
Key Features
Socket AM5 & AMD B650 Chipset: Compatible with AMD Ryzen 7000 Series processors, providing a foundation for high-performance computing.
DDR5 Memory Support: Equipped with four DIMM slots supporting up to 128GB of DDR5 memory, with speeds up to 6400MHz (OC), ensuring fast and efficient multitasking.
PCIe 5.0 x16 Slot: Offers high-speed data transfer for graphics cards and other expansion cards, enhancing overall system performance.
Dual M.2 Slots & 4 SATA Ports: Supports PCIe 5.0 x4 and PCIe 4.0 x4 M.2 drives, along with four SATA 6Gb/s ports, allowing for ample storage options.
Realtek 2.5Gb Ethernet: Provides fast and stable wired networking capabilities, suitable for gaming and content creation.

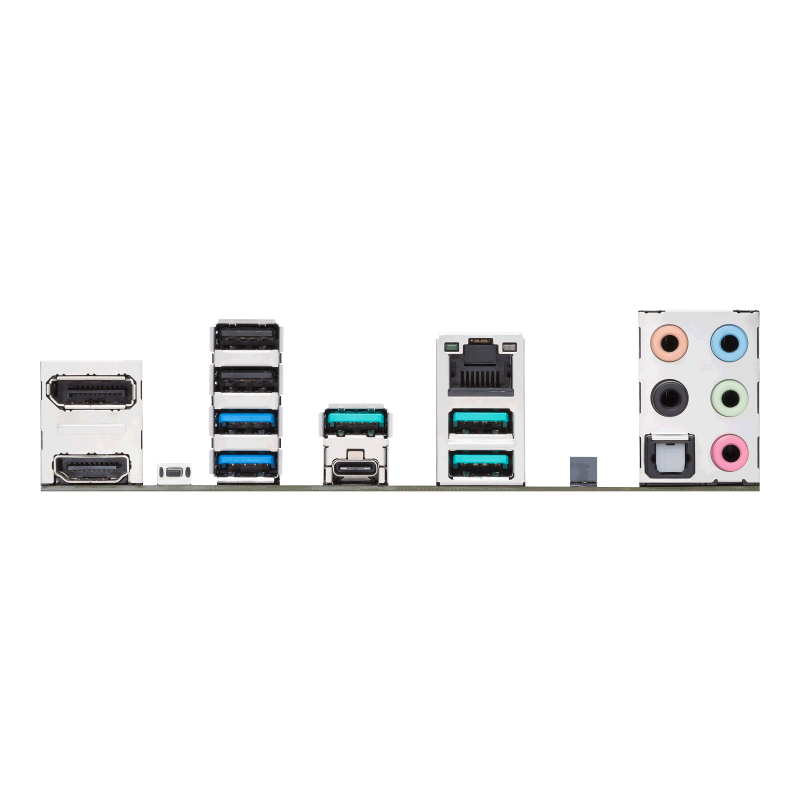

Comprehensive I/O Ports: Includes HDMI, DisplayPort, USB 3.2 Gen 2 Type-C®, USB 3.2 Gen 1, and USB 2.0 ports, offering versatile connectivity options.
Enhanced Cooling Solutions: Features VRM heatsinks, M.2 heatsink, and hybrid fan headers to maintain optimal temperatures during intensive tasks.
BIOS FlashBack™: Allows for easy BIOS updates without the need for a CPU or memory installed.
ASUS PRIME B650-PLUS Price in Bangladesh
The ASUS PRIME B650-PLUS motherboard is available at Eastern IT, offering competitive pricing and official warranty support. Please contact Eastern IT directly or visit their website for the most current pricing and availability.
Why Buy from Us – Eastern IT
At Eastern IT, we provide more than just hardware; we offer a comprehensive service experience:
100% Genuine and Brand-New Products: Ensuring authenticity and quality.
Official Warranty Support: Providing peace of mind with manufacturer-backed warranties.
Fast and Responsive After-Sales Service: Addressing any concerns promptly and efficiently.
Expert Guidance: Assisting you in selecting the best products tailored to your needs.
Competitive Pricing: Offering the best prices in the country.
Leading IT Wholesaler in Bangladesh: Trusted by professionals and enthusiasts alike.
Enhance your computing experience with the ASUS PRIME B650-PLUS, available now at Eastern IT.
